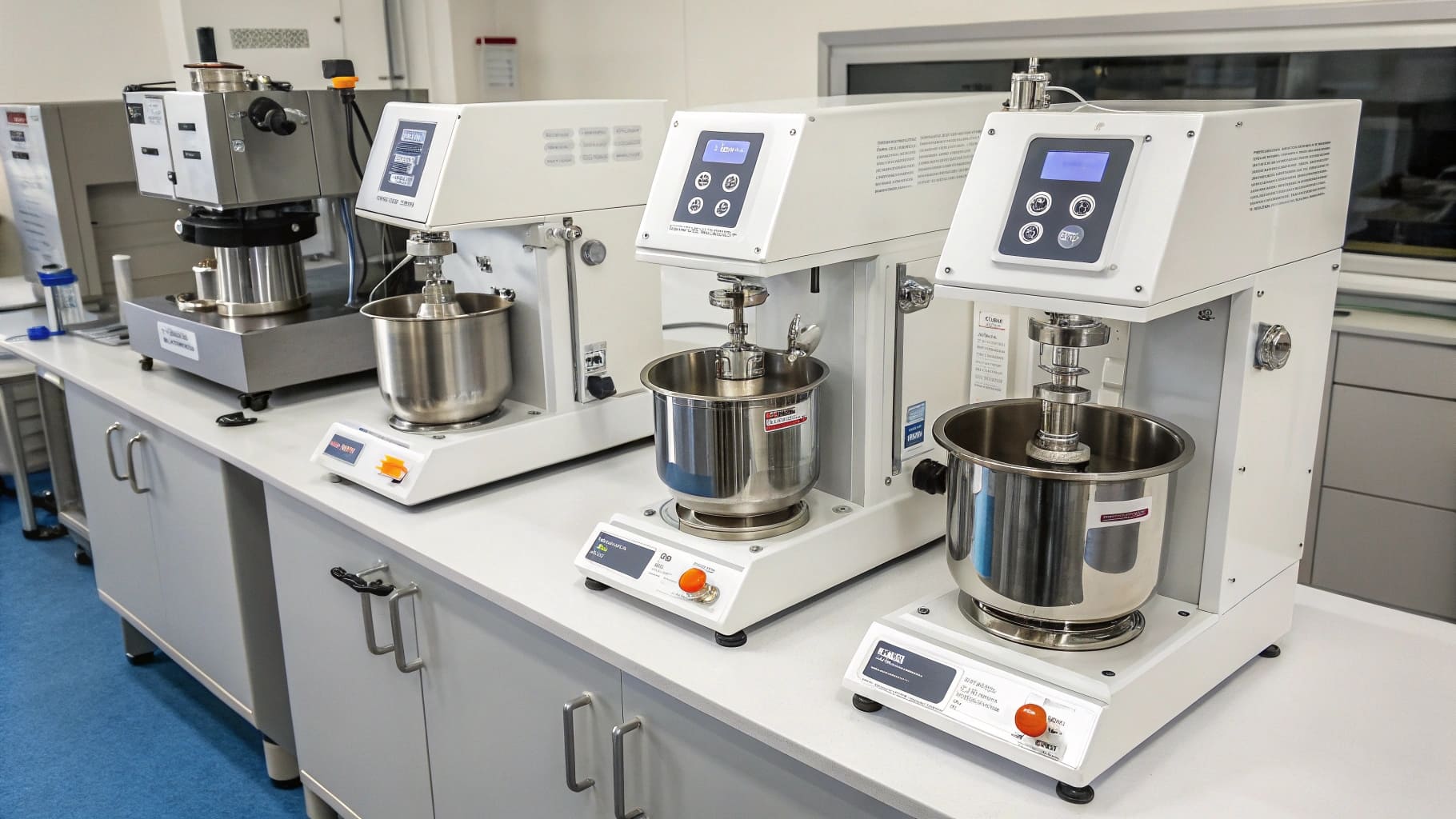

Small-Scale Planetary Vacuum Mixers For Laboratory Precision
Contents For This Page
Contact our technical team today to discuss your specific application requirements.

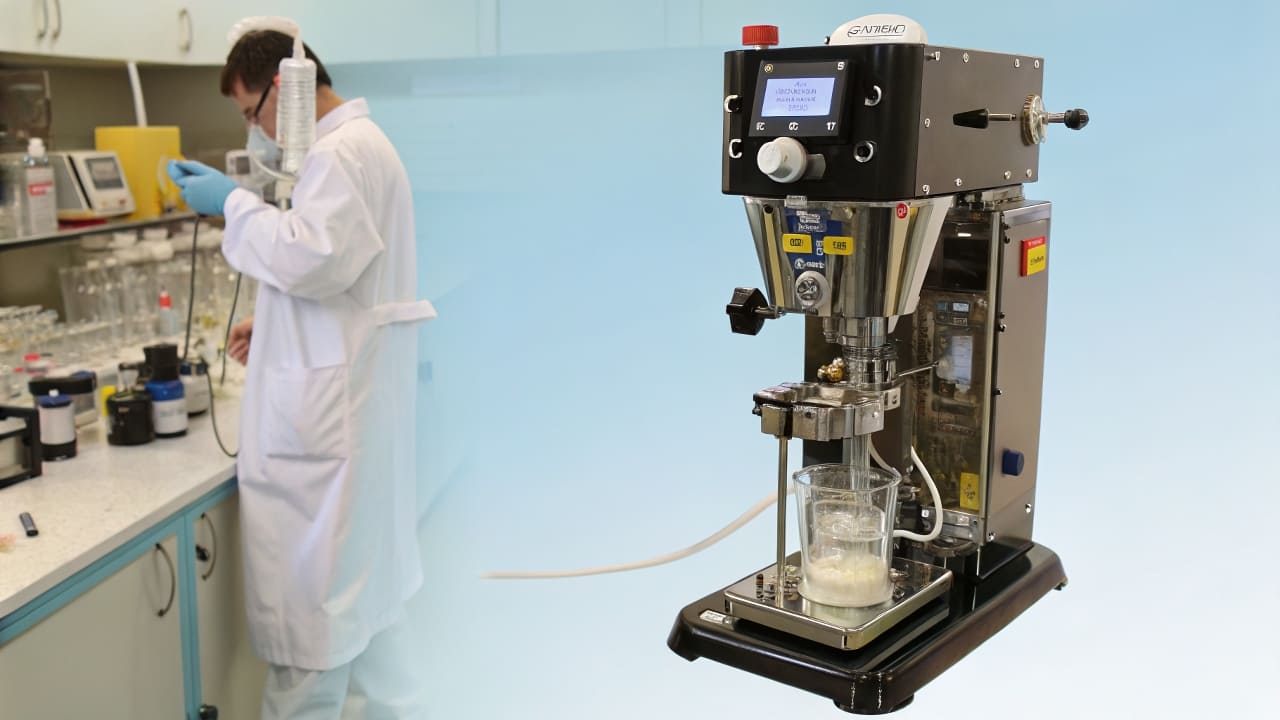

Laboratory Application of the MixerStar Small Volume Vacuum Dissolver
Advantages in a Laboratory
- Small Volume Capability
Minimizes material waste and allows for rapid iteration of experiments.
- Vacuum Functionality
Essential for de-aerating samples, preventing oxidation of sensitive materials, and achieving bubble-free products, which is crucial for many applications (e.g., optical coatings, clear resins)
- High Viscosity Capability
Designed to handle thick pastes and slurries that standard laboratory stirrers cannot effectively mix.
- Precise Control
Typically features digital controls for speed, time, and vacuum, allowing for reproducible experimental conditions.
- Easy to Clean (often)
Stainless steel construction and thoughtful design usually facilitate easy cleaning between experiments, preventing cross-contamination.
- Scalability Studies
Data gathered from small-scale mixing can be used to inform and predict the behavior of materials in larger production mixers, aiding in process scale-up.
| Feature | DPM-1L | DPM-2L | DPM-5L |
|---|---|---|---|
|
Working Volume |
1L |
2L |
5L |
|
Total Volume |
1.5L |
3.3L |
7.8L |
|
Dimensions (mm) |
1050×530×1080 |
1150×620×1350 |
1350×650×1550 |
|
Mixer Motor |
0.5KW |
1.1KW |
1.5KW |
|
Disperser Motor |
0.75KW |
1.5KW |
2.2KW |
|
Best Application |
Lab research, Formula development |
Small-batch production, Process validation |
Pilot production, Process optimization |
Available Models for Every Application
Advanced Technology Features
Dual Planetary Mixing System
Our proprietary dual planetary design creates complex material flow patterns that ensure thorough component distribution and homogenization.
Orbital speed (planetary box): 0-60rpm
Handles materials: up to 1,000,000cP viscosity
Blade rotation speed: 0-100rpm
High-Performance Dispersion
Equipped with dual dispersion shafts and specialized serrated discs to break down agglomerates and ensure uniform particle distribution.
Dispersion speed: 0-6500rpm (model-dependent)
Multiple dispersion discs per shaft
Customizable configurations for different materials
Advanced Vacuum System
Achieve bubble-free mixtures with our efficient vacuum system, essential for quality-critical applications where air entrapment compromises performance.
Operating vacuum pressure: -0.098MPa
Quick-connect vacuum port
Transparent viewing ports for process monitoring
Precise Temperature Control
Double-layer jacketed design for effective heating or cooling during the mixing process to maintain optimal material properties.
Temperature range: -10°C to +120°C
Independent wall and bottom jacket control
Maximum jacket pressure: 0.4MPa
Premium Components for Maximum Reliability

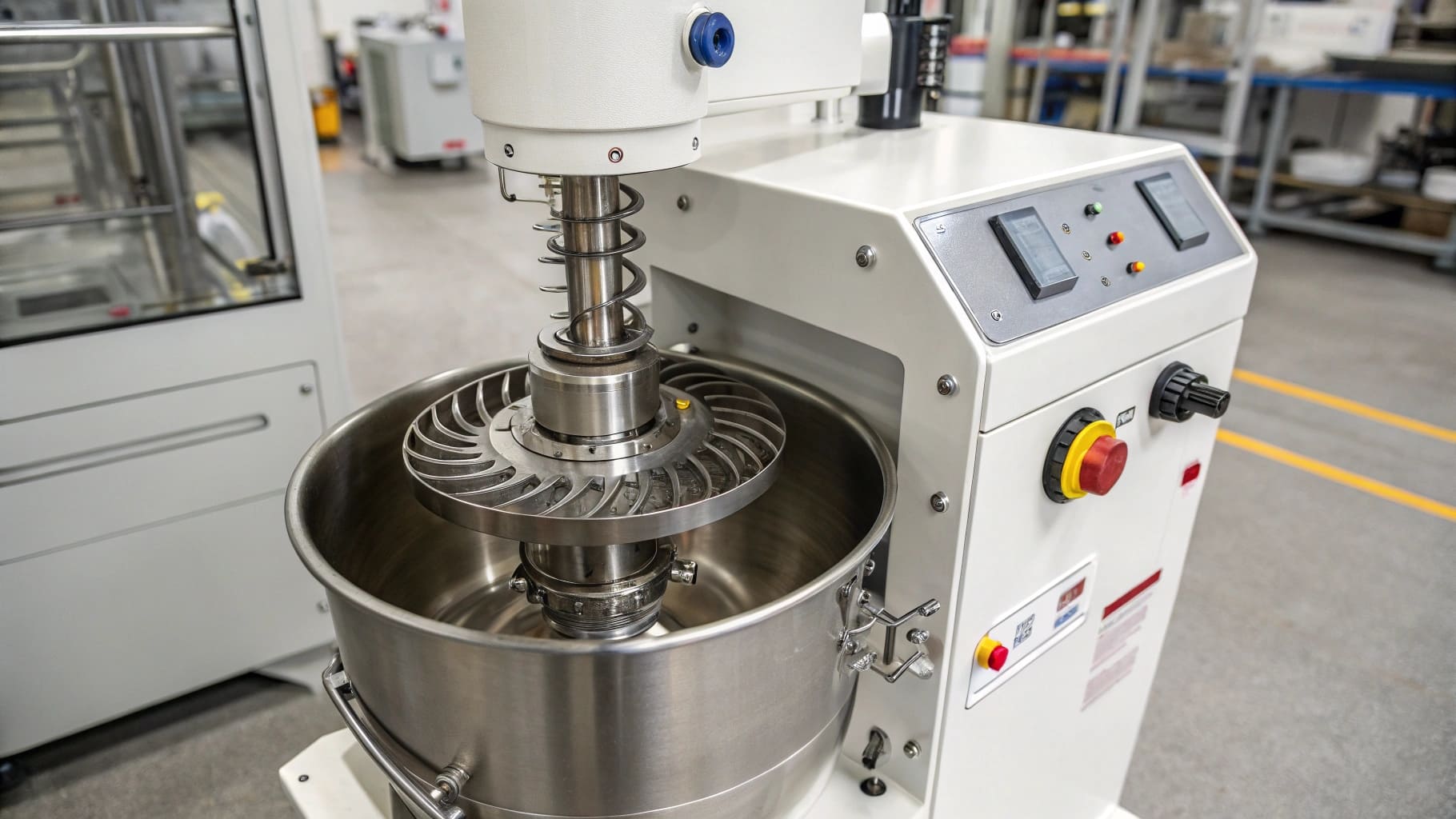

Mixing Blades

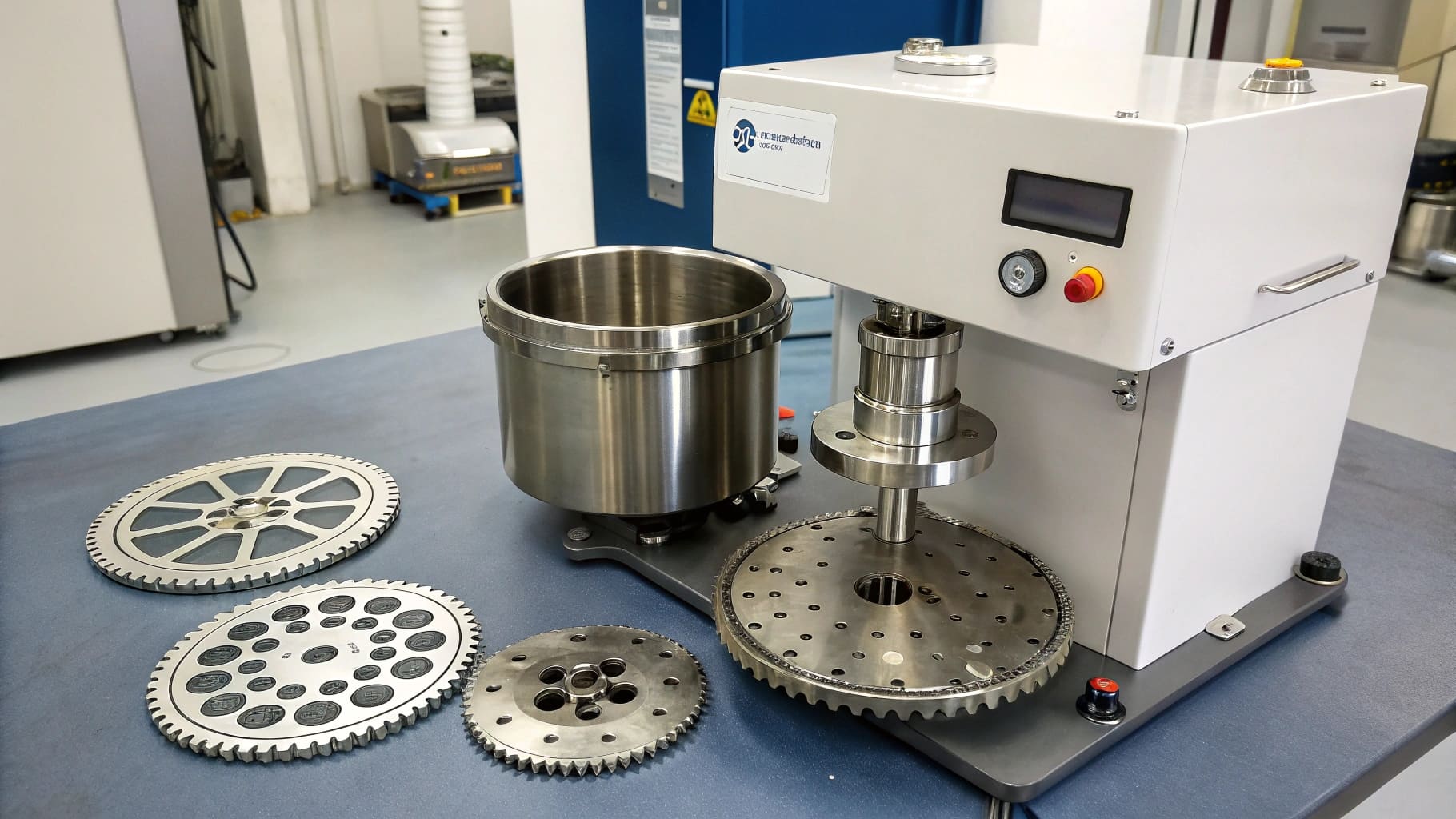

Disperser Discs

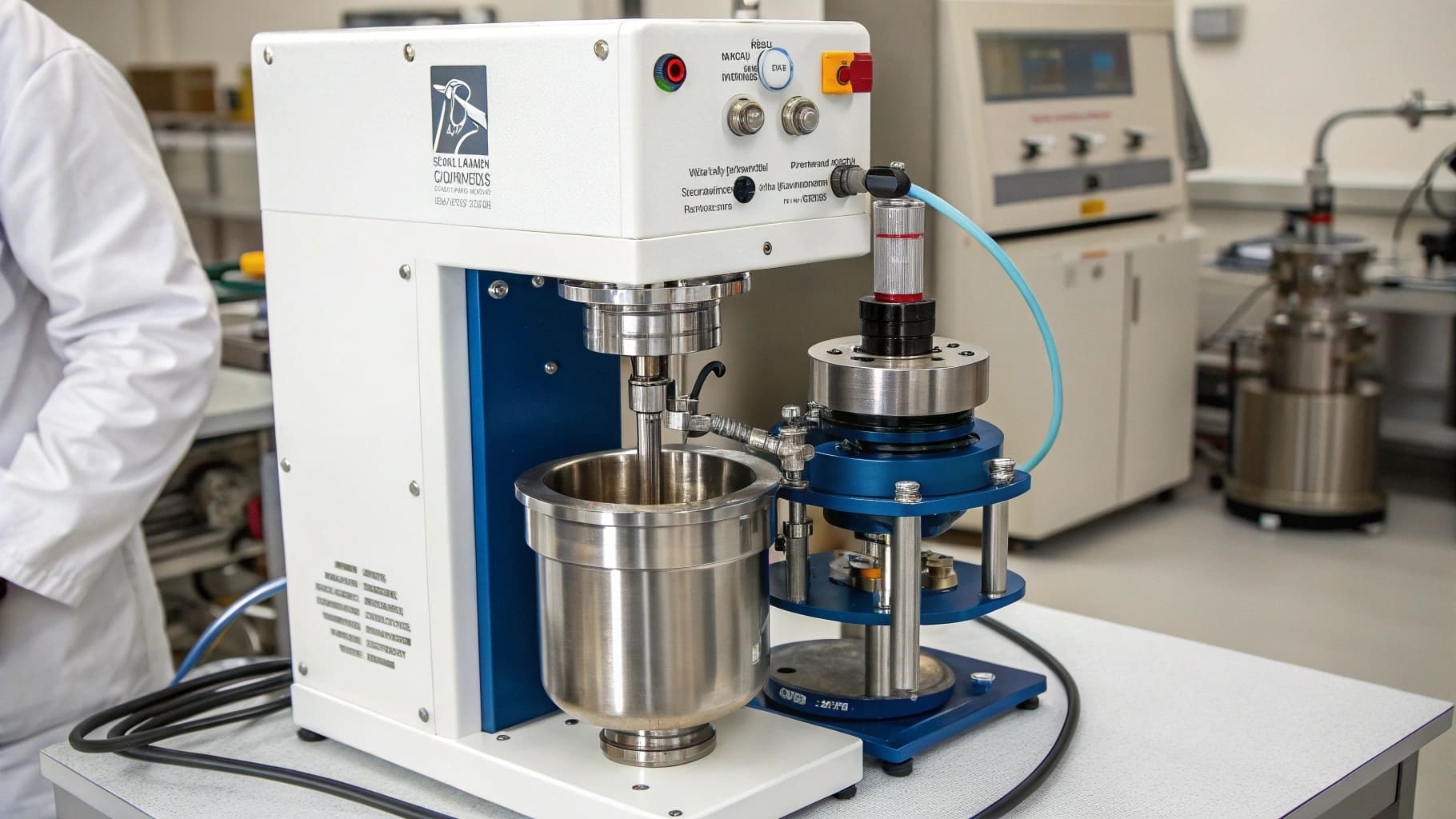

Sealing System
Drive Systems
Bearings

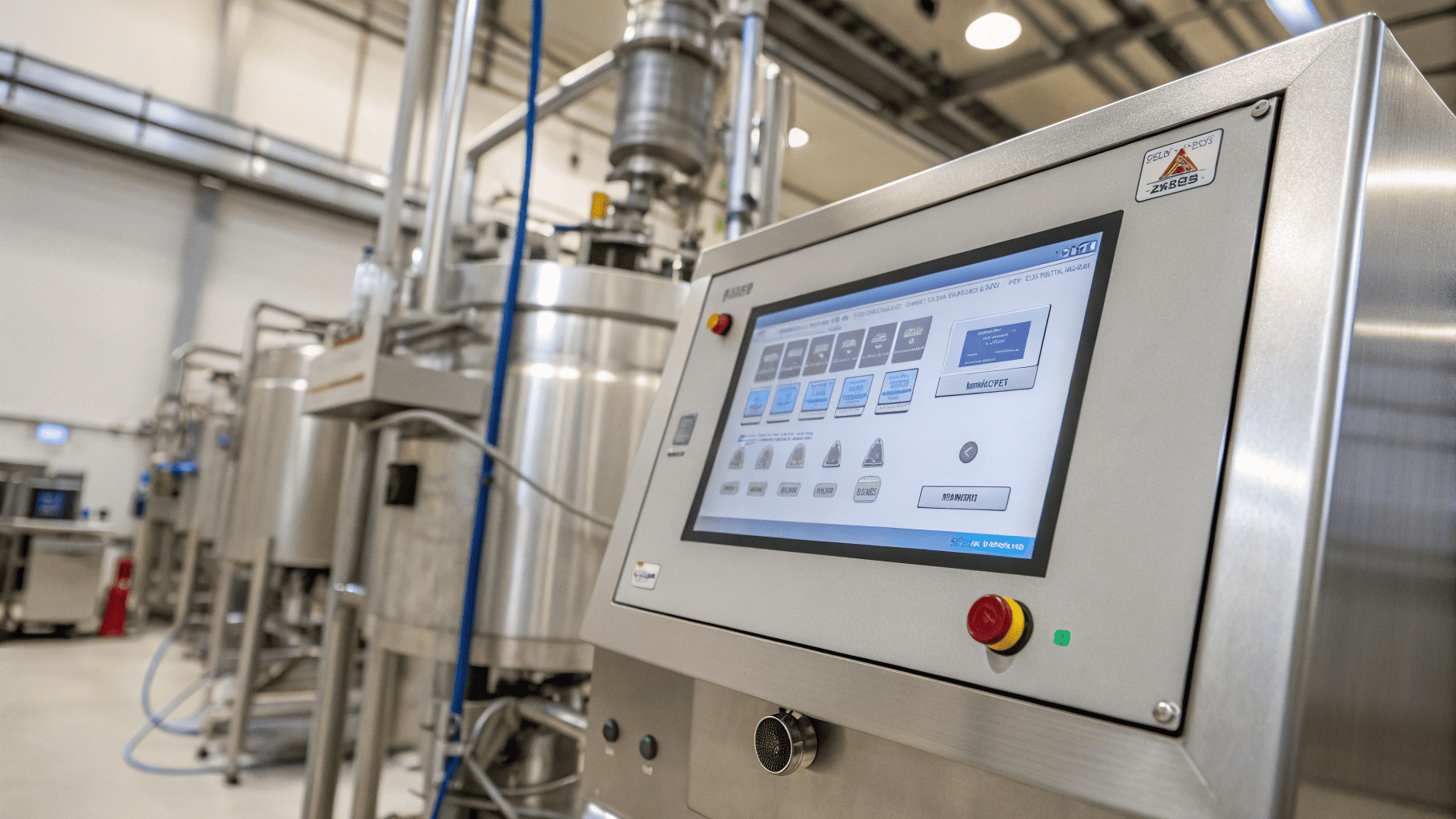

Control System
Serving Diverse Industries with Specialized Mixing Solutions
Battery Manufacturing
Battery Manufacturing
Advanced Materials & Chemicals
Advanced Materials & Chemicals
Pharmaceuticals & Cosmetics
Pharmaceuticals & Cosmetics
Food Processing
Food Processing
Research & Laboratories
Research & Laboratories
Other Industry
Other Industry
Application Success Stories for Businesses Like Yours
Battery manufacturing facility

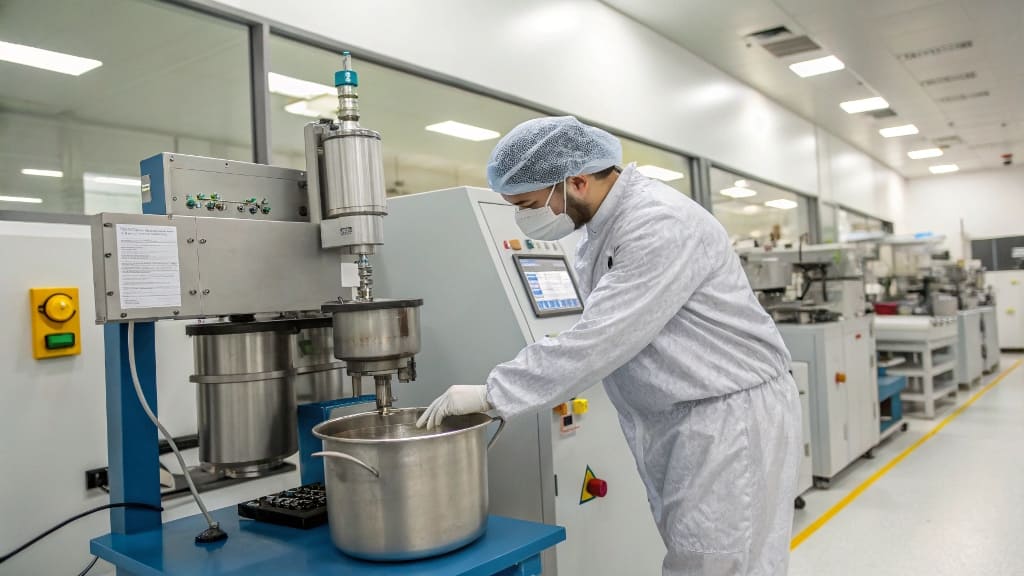

Enhancing Battery Slurry Homogeneity for a Leading Manufacturer

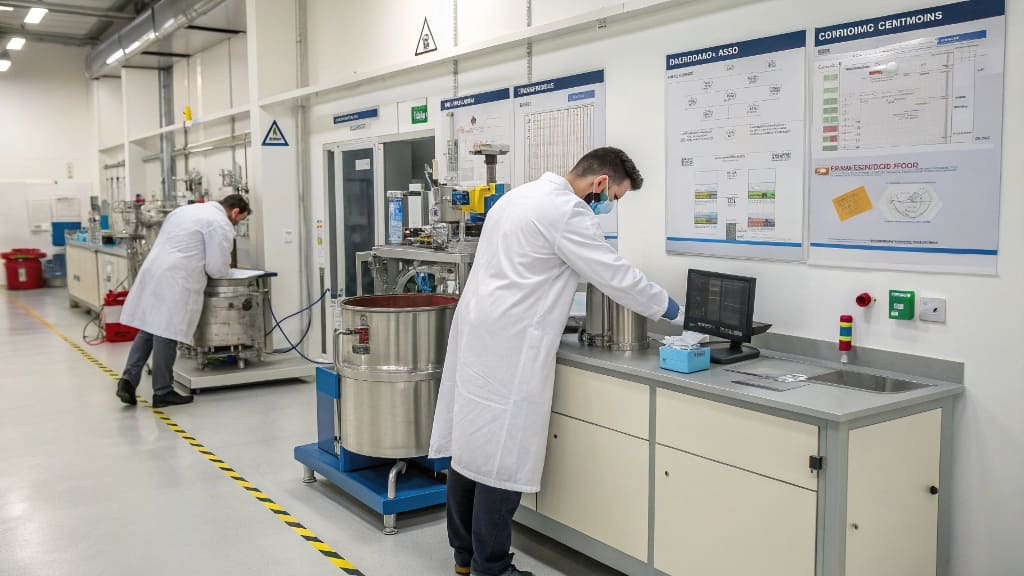

Specialty chemical processing
Consistent High-Viscosity Polymer Blending for Chemical Company
R&D applications
Enabling Scalable Pharmaceutical Cream Development
Frequently Asked Questions
- 12-month comprehensive warranty (excluding wear parts)
- 24-hour technical response time
- Detailed operation and maintenance documentation
- Readily available spare parts
- Preventive maintenance programs available
